Straumann ITI BL NC Anatomic Abutment - angled 15°, GH 2mm/3.5mm
ITI Straumann Bone Level® Titanium Angled Anatomic Abutment
NC 3.3mm 15° Degree, GH 2mm/3.5mm
Desciption:
This angled abutment comes with a screw that takes the Straumann® Torx driver
This abutment is prep-able with a 2mm/3.5mm collar height.
Material:
Ti 6AI-4V ELI (Supply from Germany)
Reference Number:
022.2152
022.2154
Feature:
* Titanium interface abutment
* 1pc Screw Included
* Precision machined up to ± 5µm
* Combination of high fatigue strength
* Superior level of biocompatibility
* Can production Custom interface
Approved by CE, ISO 9001, ISO 13485
Implant Line
Bone Level Implants
Abutment Type
Standard Abutment
Indication
Single Crown/Bridge (multi unit)
Fixation
Cement-retained
Material
Titanium
Angulation
Angled
Gingiva Height
2mm / 3.5 mm
Angulation (°)
15°
Connection Type
NC (Narrow CrossFit®)
Points of ITI Straumann Bone level Angled Abutment:
Fig. 8
Narrow connection (NC) Implant/abutment platform diameter abutments can be categorized in to four groups, anatomic, gold (UCLA), ceramic and "cementable". Anatomic, gold and ceramic abutments are intended to be selected and modified extra orally on a master model after a fixture level impression (direct, indirect).

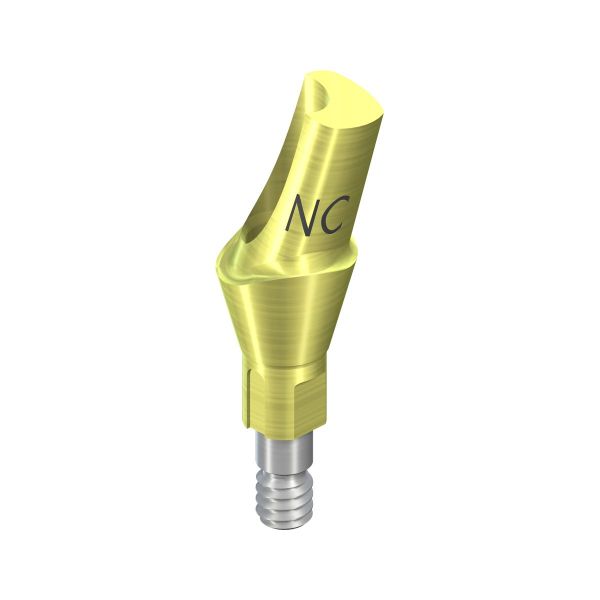

Anatomic titanium abutments (Fig.8) are machined as a straight and a angled (15°) version. Each abutment is available in two collar heights (2mm, 3.5mm) and the angulation of the angled abutment is machined in relation to the vertex of the indexing quadrigon (square).
